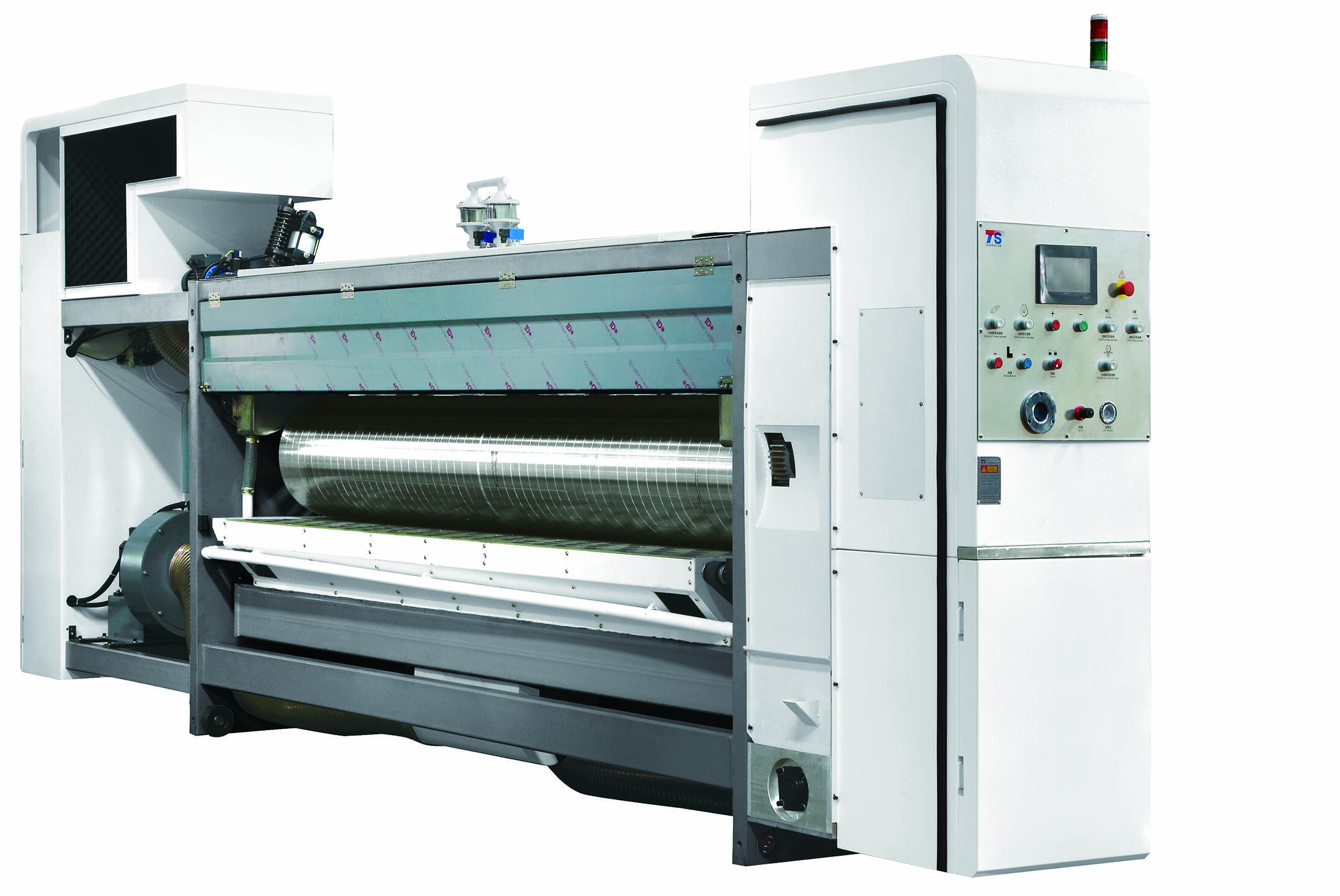

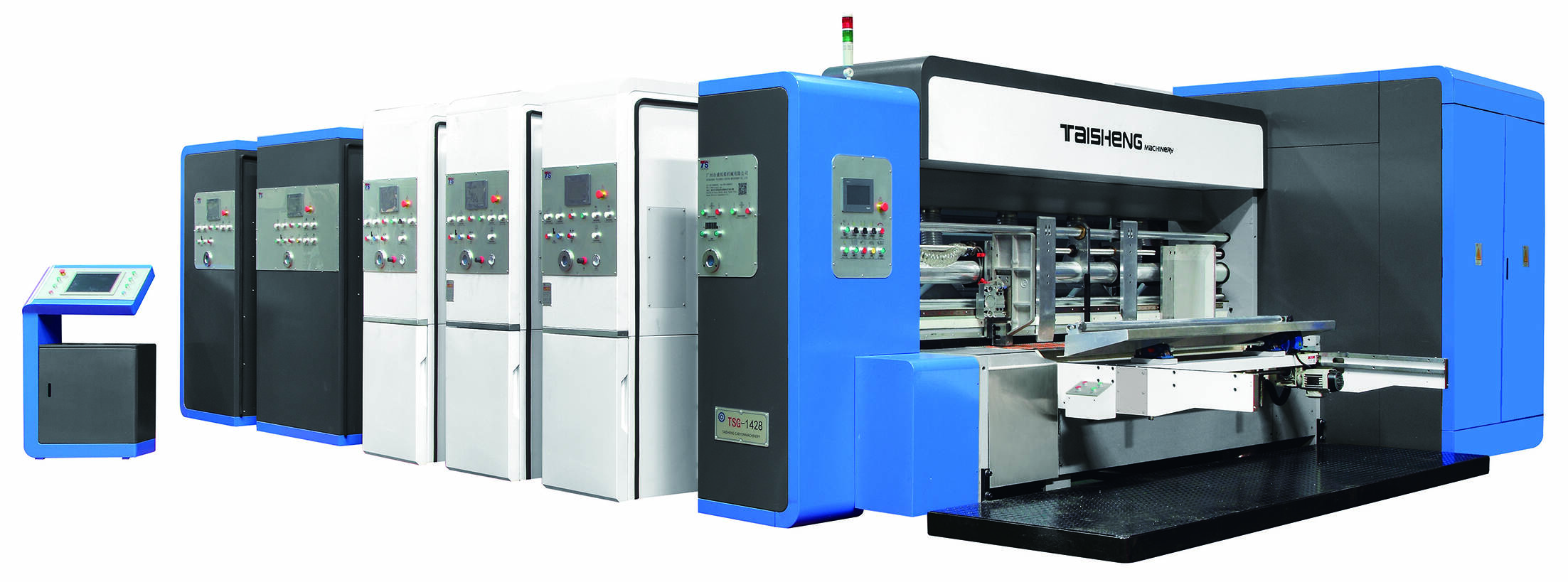

TSG-2S Whole Vacuum Transfer High Speed Printer Slotter Die Cutter Machine

TSG-2S Whole Vacuum Transfer High Speed Printer Slotter Die Cutter Machine

The corrugator machine, also known as a corrugated cardboard production line, is a series of machines that can bring three, five, or seven sheets of paper together to form single, double, or triple wall cardboard. The corrugated cardboard manufacturing process is a continuous process. Please order if you have any requirements!

اتصل بنا
Inquiry Basket
مكان المنشأ:
قدرة العرض:
6 piece ل شهر

corrugated board printing machine

The Details of product

 Model TSG-2S-920 TSG-2S-1224 TSG-2S-1424 TSG-2S-1628
Max. Machine Speed  (pcs/minute) 280 230 200 180
Max. Feeding Size (mm) 900×2000 1200×2400 1400×2400 1600×2800
Jump Feed Max. Cardboard Size(mm) 1200×2000 1500×2400 1600×2400 1900×2800
Min. Cardboard Size(mm) 300×600 365×600 400×600 450×600
Max. Printing Size 900×1960 1200×2360 1400×2360 1600×2760
Min Slotter Blade Space (same side)(mm) 150×150×150×150 150×150×150×150 150×150×150×150 150×150×150×150
Min Slotter Blade Space (against side)(mm) 240×65×240×65 260×65×260×65 260×65×260×65 260×65×260×65
Max Slotting Deep(mm) 250 300 350 400

2023.3 (1).jpg

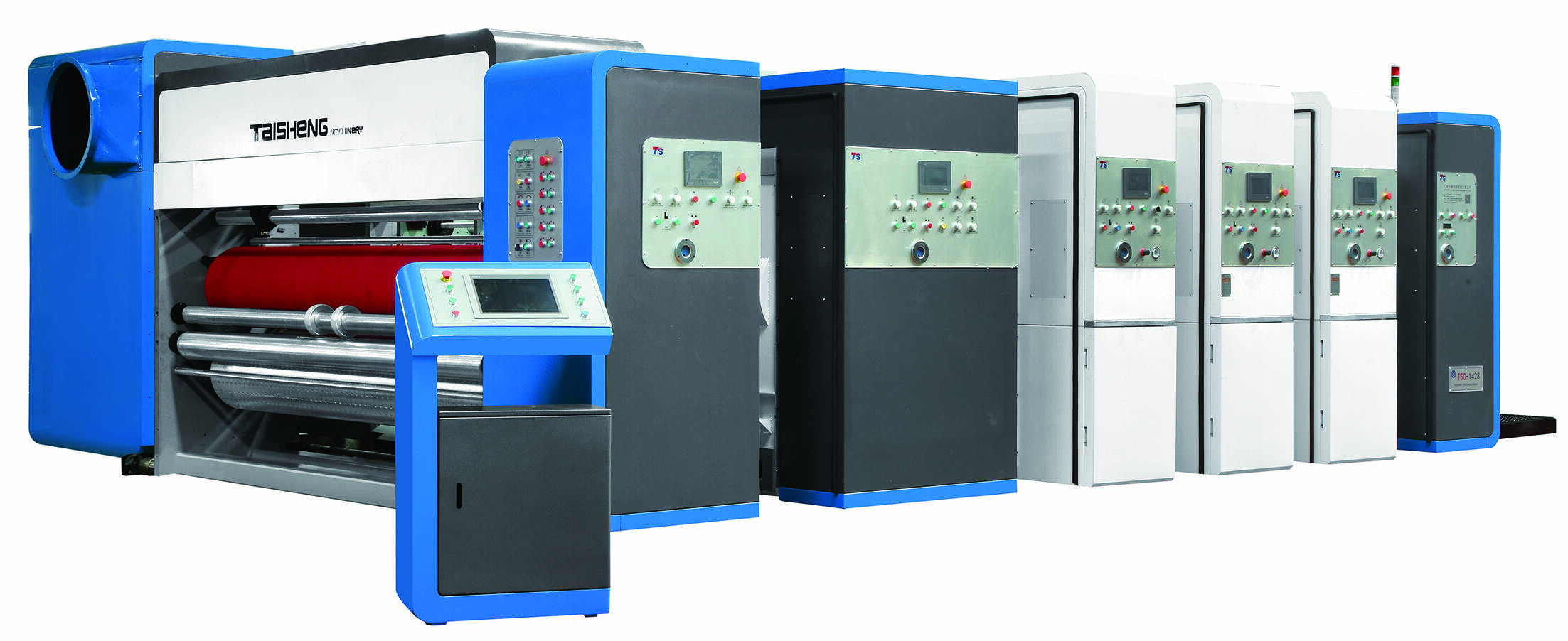

Performance Characteristics of The Whole Machine

The whole vacuum transfer design,full version printing with high definition.

Lead-edge suction feeding system,adjustable air volume,host frequency conversion control

Phase electric adjustment by PLC , connection unit locking by pneumatic,electrically control the separation and combination of machine.

Fine grinding gear, gear lubrication using spray lubrication cycle, no key structure locking

Chromatically multicolored printing accurately , printing effect  beautiful.

Easy operation and convenient maintenance,high degree of automation,high effciency production.

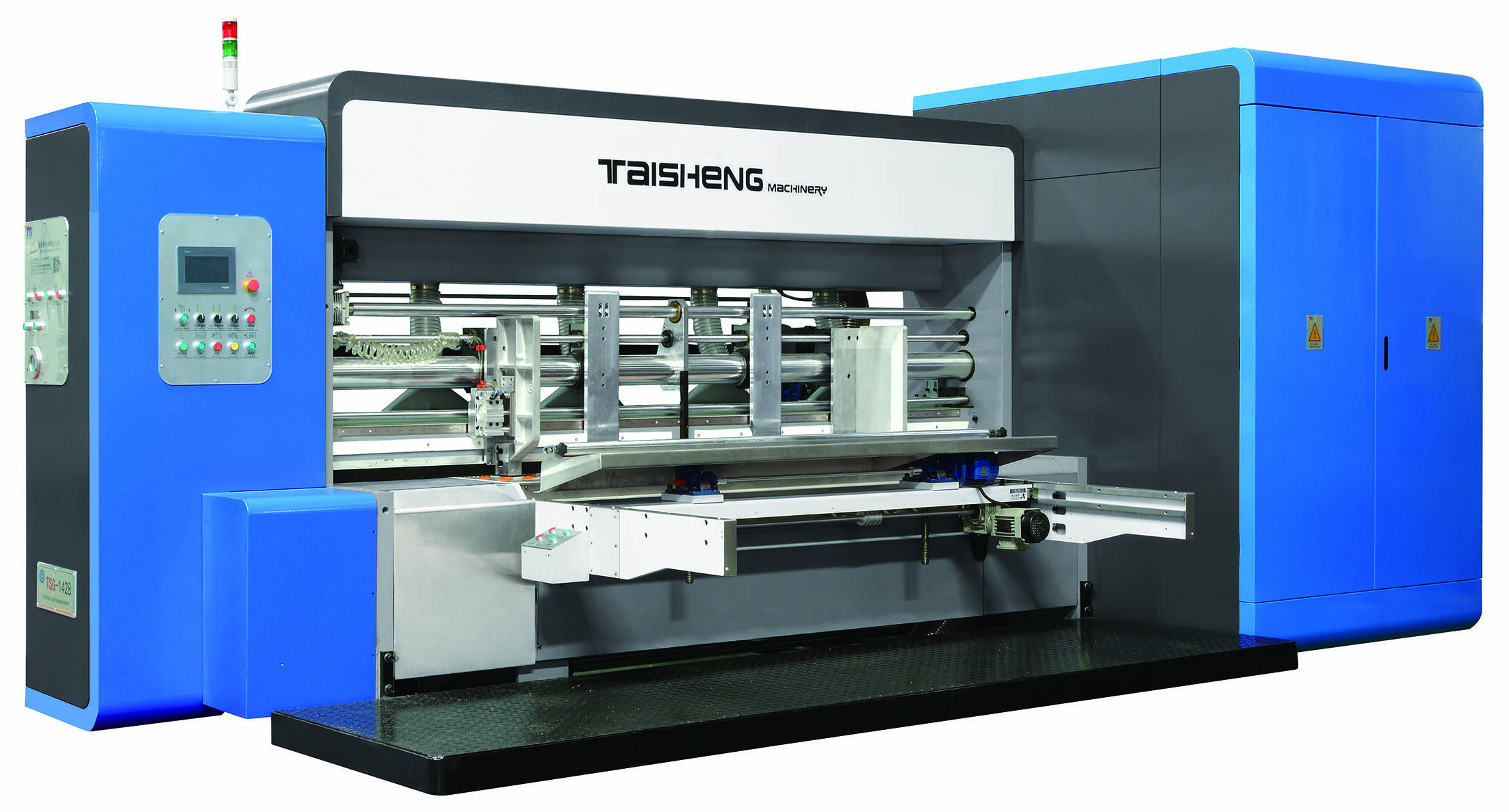

Feeder Unit

Can be continuous feeding and skip feeding.

Inverter control the vacuum air and pressure,to follow the cardboard size.

Can adjust the feeding preceding to reduce the pressure of pushing roller.

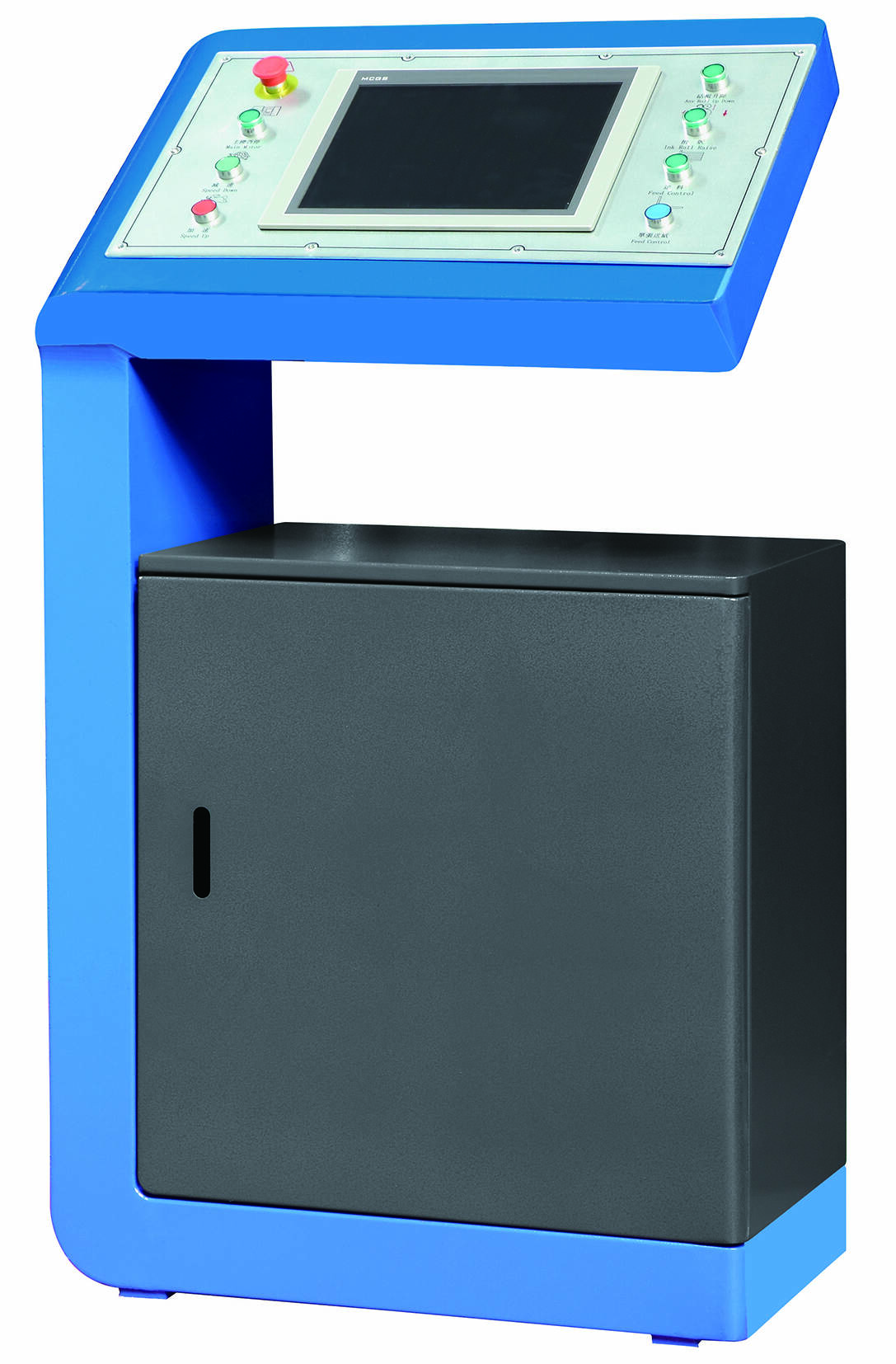

Computer control the gap of pushing rollers and the position of both sides guard.

Backside stacker computer control front and backside,increase the speed of set up.

Two wire brush and fan cleaning the scraps of paper in surface of the cardboard.To increase the printing quality.

The adjustment of the gap of pushing rollers adopts computer control,between 0-12mm.

The power transmission system adopts cam bearing transmission,in order to reduce the abrasion and make the transmission more steady

Protector of main motor start(The main motor can not start when the machine didn't lock well).

Feeder Unit and Printer Unit adopt encoder making zero.


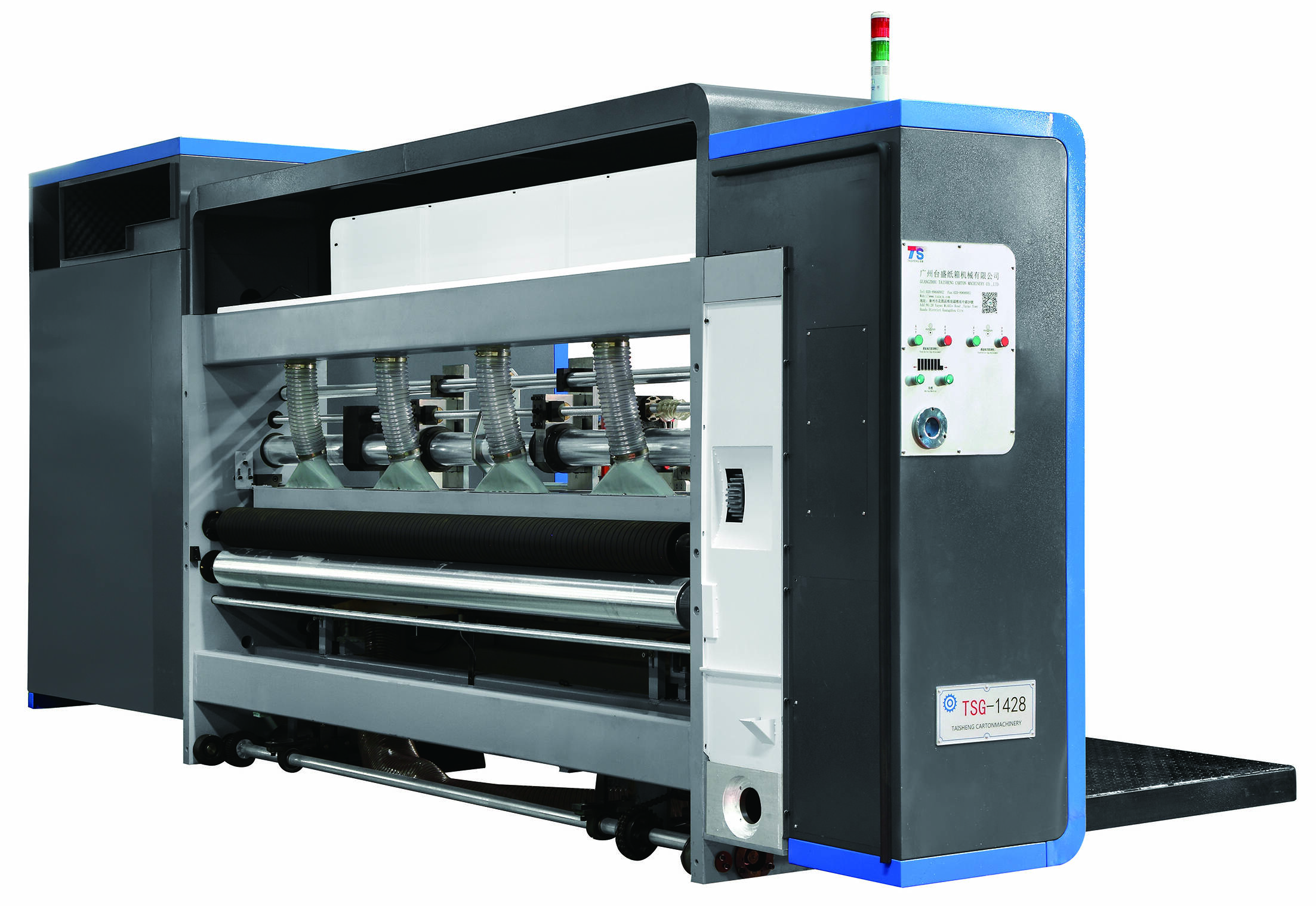

Vacuum Transfer Printing Unit

The die roller is made of high quality steel, hard chrome plating,surface grinding.

Balance correction,Increase running stability .

The anvil roller is made of high quality steel, hard chrome plating,surface grinding.

Balance correction,Increase running stability .

Computer and digit control system are adopted for the  space of pushing roller.

Planetary gear structure.

Computer and digit control system are adopted for the die cutting phase,can adjust circle.

Computer and digit control system are adopted for the broadwise phase by ±10mm.

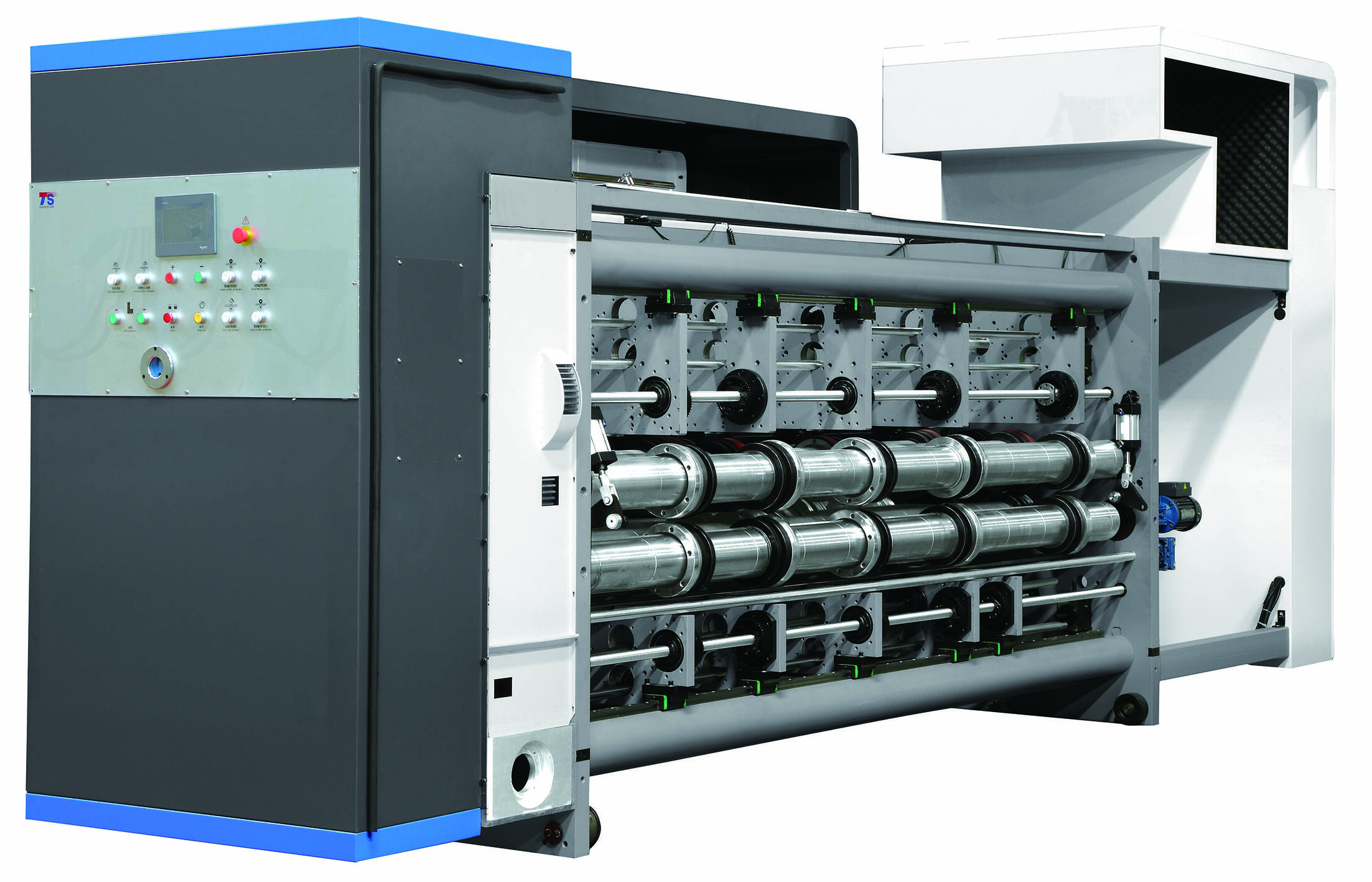

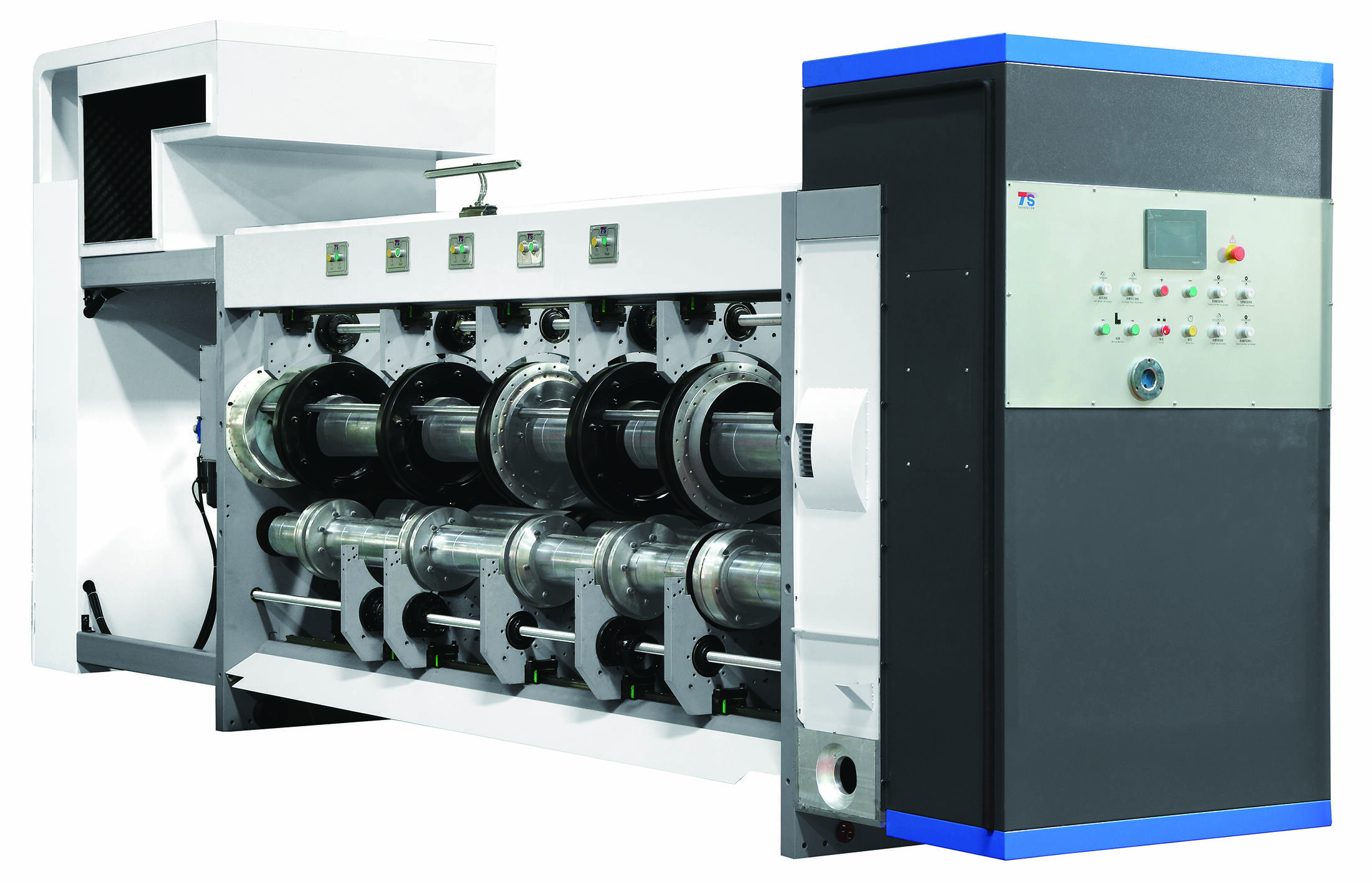

Slotter Unit

Adopt servo adjustment ----fast, exact, and stable.

Creased shaft and slotter shaft adopt high quality steel,hard chrome plating,surface grinding.

The cardboard is not easy to be broken after creased by the first creaser wheel.

The upper creaser wheel is wrapped with rubber,avoid to damage the cardboard.

Press line and preload wheel adjustment gap using computer and electric digital control.

The slotted cutter shaft clearance adopts electric adjustment, the adjustment range is 0-12mm.

The upper blade tool base and the lower blade tool base adopt the drive shaft linkage, keep the upper and lower blades alignment while moving, and extend the tool life.

Pre-creaser wheel, pre-creaser wheel,creaser wheel and slotter tool base displacement position, adopt computerized and electric digital control.

Collision protect device is adopted for slotter blade height,avoid to damage the machine.

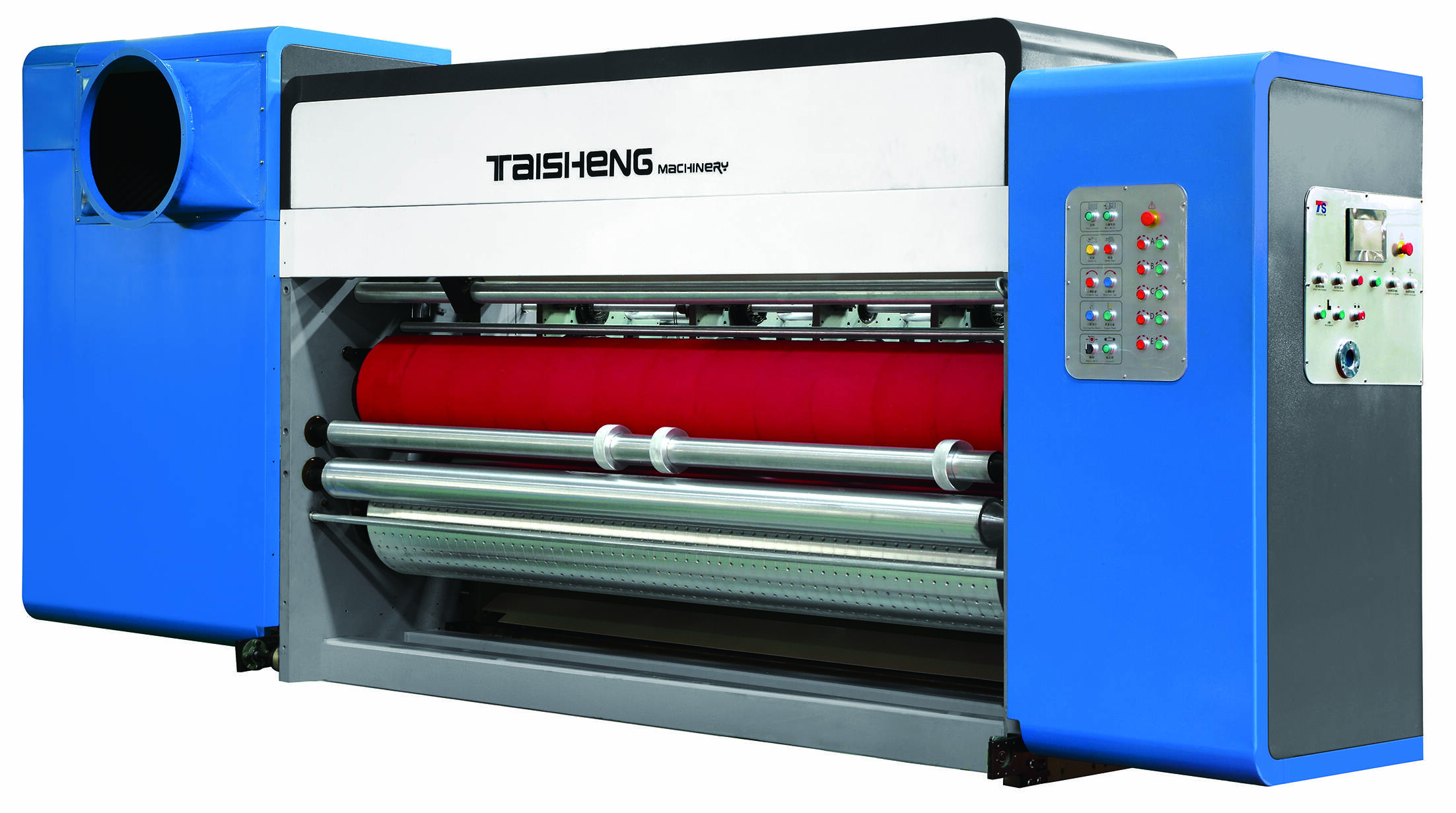

Die cutter Unit

The printing rollers are made of high quality steel, hard chrome plating,surface grinding.

Pedal switch control the printing roller turning forward or back off when install the printing sheet.

Adopts vacuum transfer(The surface of the transfer wheel is made by ceramic,in order to increase the rub and using life).Can transfer the cardboard without transfer roller.

The adjustment of the Printing pressure rollers space adopts computer control,between 0-12mm.

Immobilization device of the printing phase.Electromagnetic clutch brake type brake mechanism.The Brake mechanism to limit gear rotation,Maintain the fixed position of the original gear when the units separate or adjust the phase and cleaning.

Horizontal phase using computer control,±10mm.

Automatic reset system after cleaning plate.

Pneumatic single diaphragm pump,Ink supply stability,Operation maintenance is simple.

Ink tank is placed under the Single blade ink supply system.

Automatic switching cleaning device makes ink recycling more thorough.Elastic corner cutting blade structure,can cut 3 layers ans 5 layers cardboard without adjustment,easy operation.Anvil roller compensation adopts servo motor,to control the speed of the anvil roller.Compensation range ±3mm.Ordinary carton producing can use making zero automatic device.The correct position can be adjusted by test printing of few cardboard.In order to not waste cardboard.
