TSV-2S Lead Edge Automatic High Speed Roller Transfer Printer Slotter Die Cutter Machine

TSV-2S Lead Edge Automatic High Speed Roller Transfer Printer Slotter Die Cutter Machine

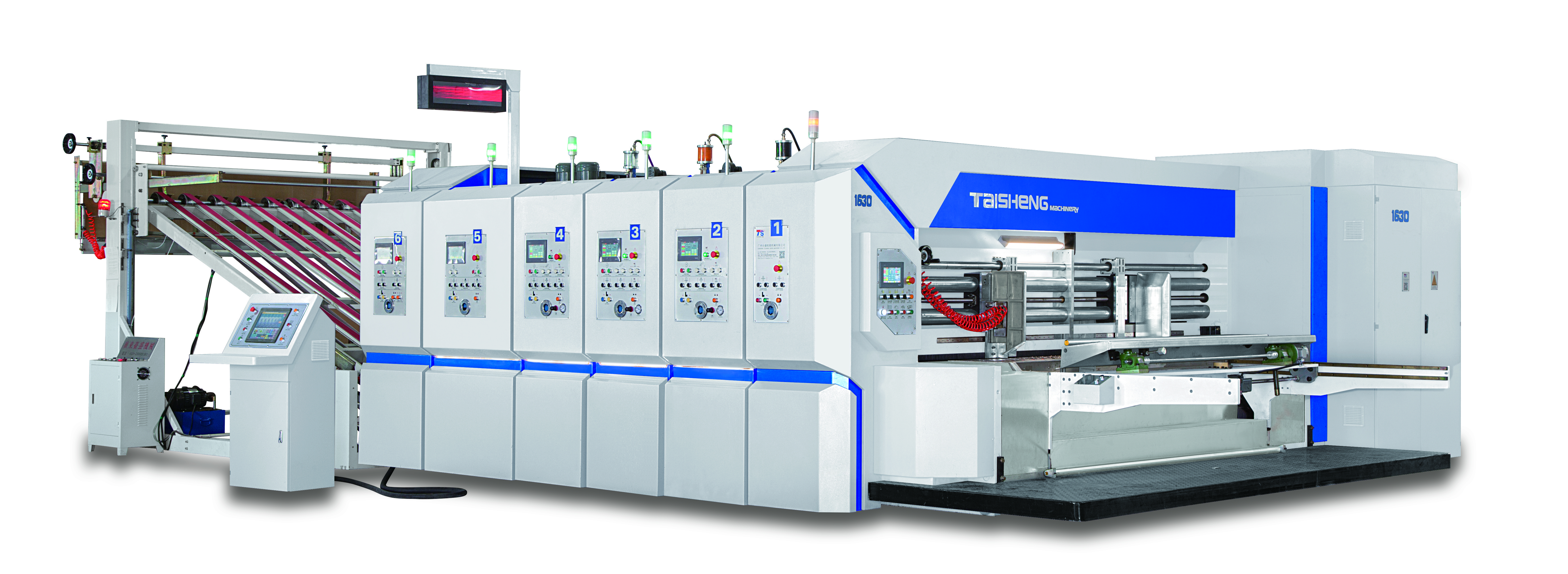

The product can perform four-color printing, cutting, indentation, trimming, grooving, die cutting, and other tasks. Using the automatic feeding mechanism in the leading edge position, air volume adjustment, and main engine frequency conversion control. To control the machine, a PLC and a color display screen are used. It is simple, quick, and adaptable.

اتصل بنا
Inquiry Basket
مكان المنشأ:
قدرة العرض:
6 piece ل شهر

flexo printing machine suppliers

The Details of product

Model TSV-2S-920 TSV-2S-1224 TSV-2S-1628
Max. Machine Speed  (pcs/minute) 280 230 180
Max. Feeding Size (mm) 900×2000 1200×2400 1600×2800
Jump Feed Max. Cardboard Size(mm) 1200×2000 1500×2400 1900×2800
Min. Cardboard Size(mm) 300×600 365×600 450×600
Max. Printing Size 900×1960 1200×2360 1600×2760
Min Slotter Blade Space (same side)(mm) 150×150×150×150 150×150×150×150 150×150×150×150
Min Slotter Blade Space (against side)(mm) 240×65×240×65 260×65×260×65 260×100×260×100
Max Slotting Deep(mm) 250 300 400


Performance Characteristics of The Whole Machine

The whole machine is easy to adjust.

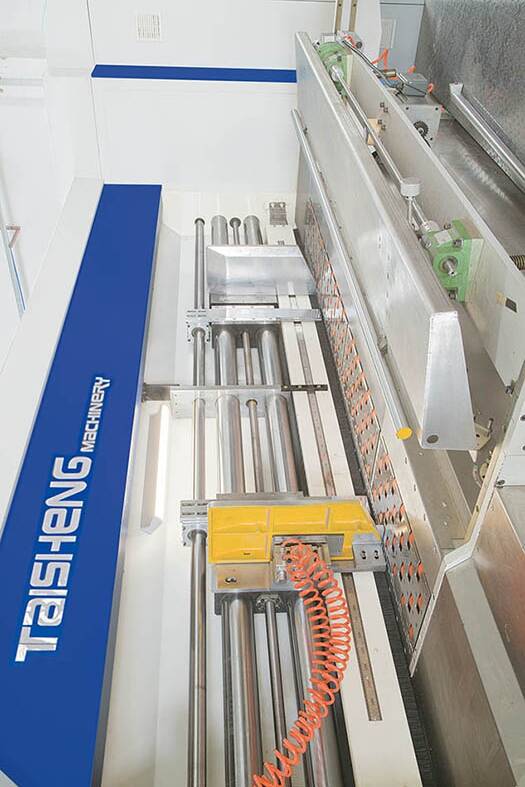

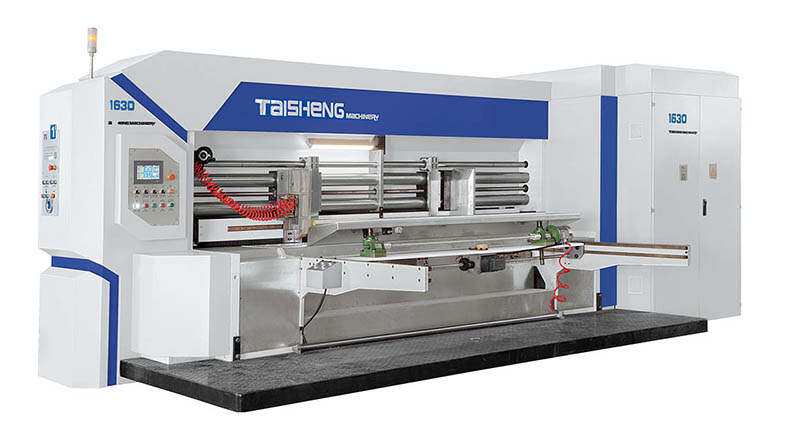

Feeder Unit

Absorption blower assist ahead orientation and automatic sending cardboard.

The leading edge feeding system adopts Italian technology.

Front sided and backside baffle automatic adjustment,dial showing.

Equipment with wire brush  and blowers to clean the scraps of paper on the surface of the sheet automatically.

Skip feed device with continuous feed or every other paper feed options.

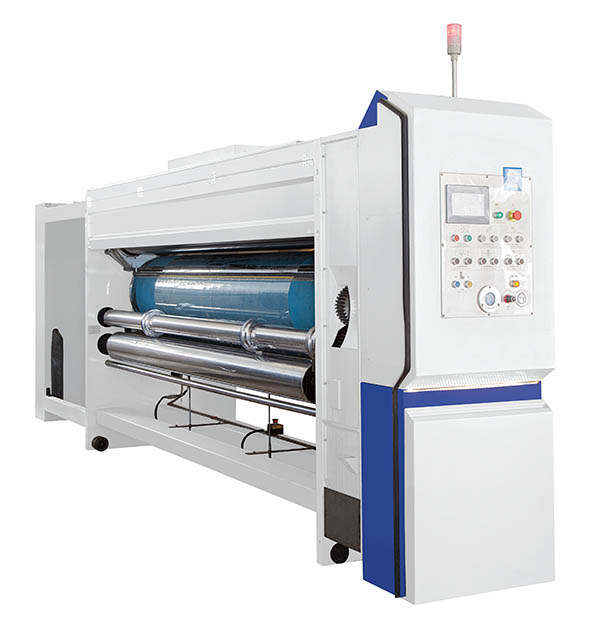

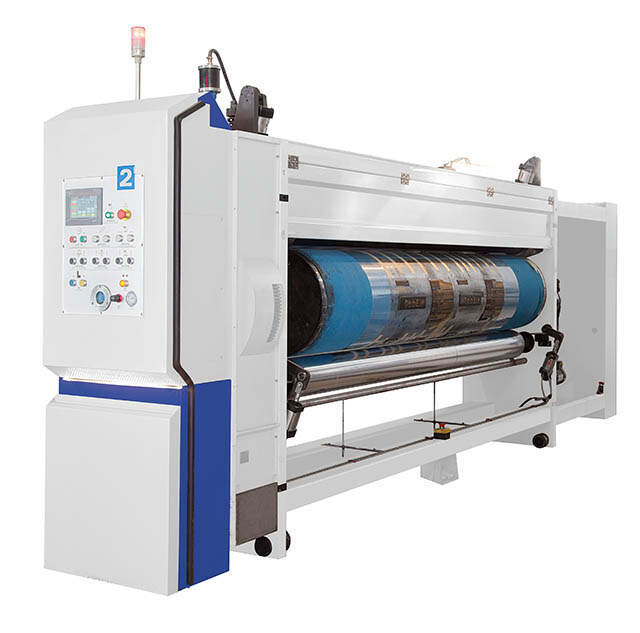

Printing Unit

Steel anilox(Ceramic anilox is optional).

Fast change device is adopted in the printing unit for changing the flexo plate.

Computerized gear adjusting for the phase of the printer freely 360° in running and stop.

Planetary gear construction for phase to increase the using times.

Brake is installed tp keep the gears fixed when machine units moving. Memorized system for the printer.

The anilox roll separates automatically from impression cylinder when sheet is not feeding.

Electric element adopts Schneider.

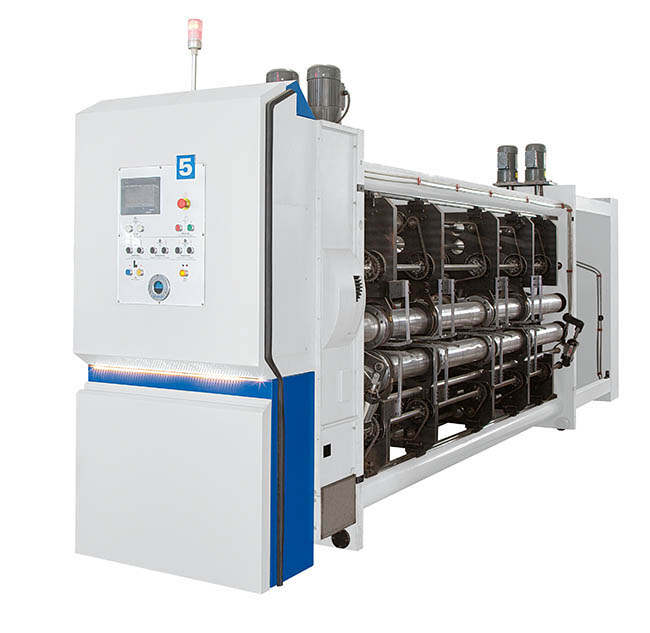

Slotter Unit

Adopt servo adjustment------ fast, exact, and stable.

Singel-axle double-knives structure is adopted,and the back-knife can be set by computer and adjusted electrically hands.

The five-knives set and all be moved,and the adjustment clearance can be set by computer and adjusted electrically by hands.

The slotter shaft and creaser shaft both adopt hard twice precision grinding.

Thers's the elastic corner-cutting knife.The 3 layers,5 layers and 7 layers cardboard don't need be adjusted.

Manual two-ways self-locking used to adjust clamping roller clearance.

The phase fixation adopts electromagnetic brake institution.When the machine and stage separate or adjusting the phase,keep the front knife plate fixed.

The HMI is equipped,which makes data setting and control easier.

The PLC can save 999 orders in memory.

The computer can automatic row of knives

TSV-2S(正) (2).jpg

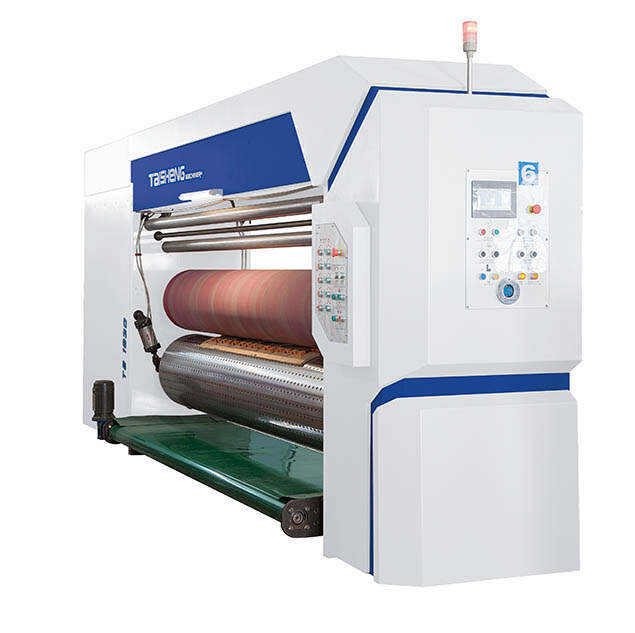

Die cutter Unit

Die-cutting roller is made of high quality steel material,balance correction,hard-chrome plating.

Machine frames are made of high quality steel material,and large processing center production.

Anvil roll grinding mechanism automatically improve glue set of repeated use,can grinding 3-4 times.

Line speed automatic compensation to ensure that each batch of cardboard boxes in full accord die-size line.

The anvil is easy to be fixed,using life of 12 million times.

Mechanical soft roll about 40mm lateral movement,the anvil cushion abrasion well-distributed.

40cr material is used for gears with 6 degrees precision grinding,low noise,long life.

Die-cutting roller is used by cylinder style automatic separating device,reduce the wear and tear of anvil pouches.
